Home CO2 Laser Cutting & Engraving Machine

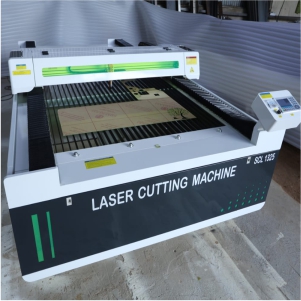

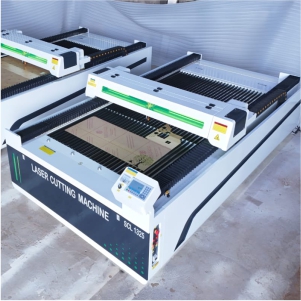

CO2 Laser Cutting & Engraving Machine

TECHNICAL SPECIFICATION

MODEL	TLC-9060 TLC-1390/1410/1610 TLC-1325
X,Y Cutting Area	900 X 600 1300 X 900 / 1600 X 1000 1300 X 2500
Laser Power	80W / 100 W130W / 150W 100W/130W
Travelling Speed	<500mm/s
Reposition Accuracy	+0.01mm
Minimum Letter Size	1mm (English Font)
Power Adjustment	1 to 100%
Maximum Cutting Thickness	Upto 15mm Acrylic Upto 20mm Acrylic Upto 25mm Acrylic
Working Table	Blade and Honeycomb(Optional)
Driving System	Stepper Motor
Operating System	Windows 7 32 bit/64 bit/Windows 10
Interface	USB interface
Supported Format	BMP PLT DST,AI,DXF,etc.
Working Voltage	Single Phase AC220V±10%, 50-60Hz (Required Earthing)
Running Environment	45°C; Humidity 5%-95% (without condensed water)
Overall Dimension(LxWxH)	1420 X 1020X 980 1820 X 1320 X 980 3650 X 1883X 940
Weight	250kg 410kg 870kg
Power Consumption	3 Kw — 10 kw

AVAILABLE OPTION

Double Head, Four Head, Motorized Up Down,

STANDARD ACCESSORIES

Standerd Blower Compressor, Honeycomb & Strips Table, Chiller.

APPLICATION

Acrylic Engraving & Cutting, MDF Engraving & Cutting, Paper Cutting, Leather Engraving & Cutting,

Engraving on Wood & Bamboo, Cutting of different 3D models and Many more.
