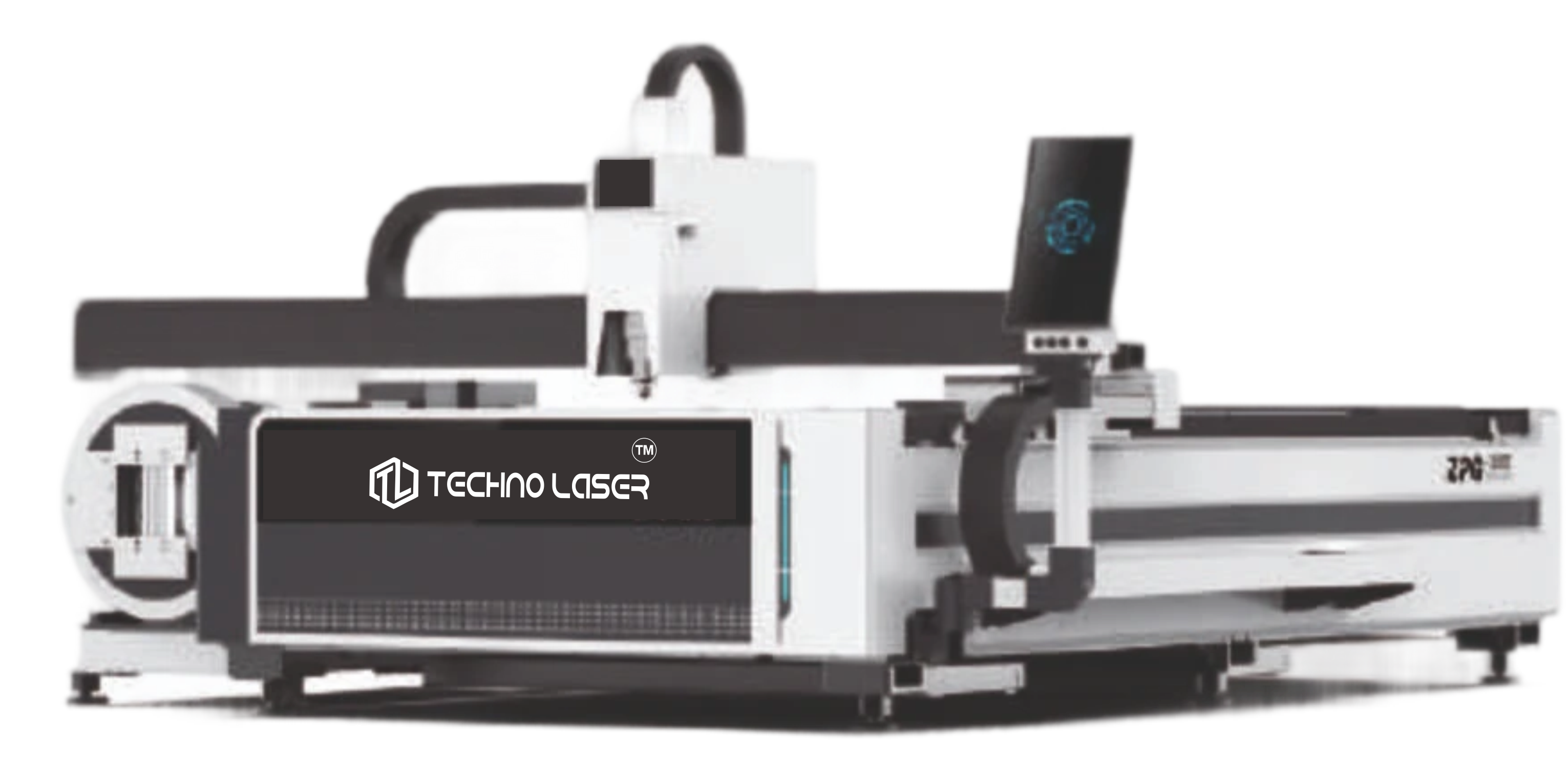

Precision sheet and tube laser cutting offers unparalleled accuracy for intricate designs. This advanced technology seamlessly cuts various materials with speed and efficiency. The versatility of these machines allows for a wide range of applications across diverse industries. From prototyping to high-volume production, laser cutting delivers exceptional results. Explore the possibilities of transforming your designs into reality with this cutting-edge technology. It can cut sheet as well as round tube, Bar, H-beam, i-beam, versatile machine for sheet and pipe cutting.

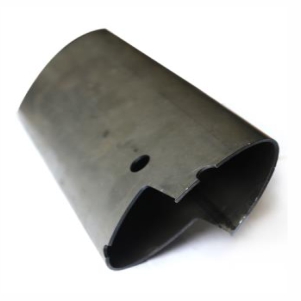

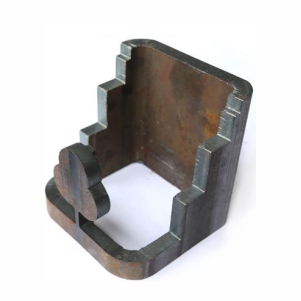

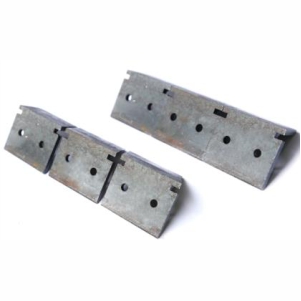

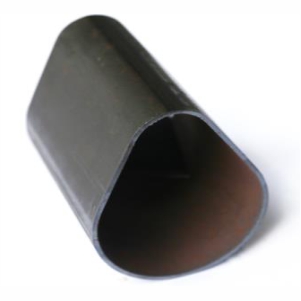

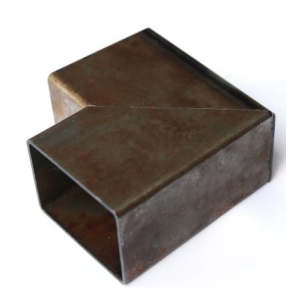

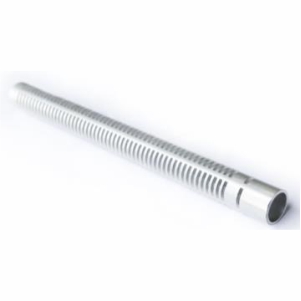

Round Tube, Rectangular Tube, U Type Tube, Channel Steel, I Beam.
The Focus is Controlled By An Internal Precision Motor And Does Not Require Manual Operation, Optimized Optical Configuration And Smooth And Efficient Airflow Design Significantly Improve Cutting Quality And Efficiency.
Modular Design And The Design Of Fine Nozzles Effectively Avoid Workpiece Interference When Cutting Special Pipes,
| Range of tube diameter | Round tube: Ø10mm-Ø120mm/020mm-Ø220mm |
| The Maximum tube | Rectangular: Ø10mm-0120mm/020mm-0220mm |
| length | 6000mm |
| Transmission system | 1500-3000-6000W |
| Loading system | Semi-auto/full-auto (Optional) |
| Loading time (From the sencond tube) | 155-205 (Time of waiting loading) |
| The max acceleraction | 1.5G |
| Positioning accuracy | ±0.05mm/1000mm |
| Length of scraps | >30mm |
| Minmum length of front chuck avoidance | >450mm |
| Jaw Clamping weight | 120chuck: 110KG |
| Graphic format | IGS etc |
| Working enviroment | 0-45, humiditys 80%, no freezing |
| Equipment power | 12KW(Resonator not included) |
| Voltage supply | 3 phase 380V/50Hz/60Hz |
| Net weight | 3600-2000-6000Kg |
| Demension | 10200mm×2350mm×2200mm (Apportionment) |
